This machine combines three functions is one device, used for punching, marking and shearing flat bars. So it's called CNC angle production line.

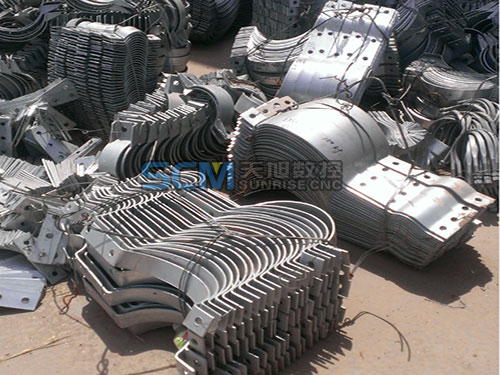

This machine is the automatic special production line used for flat bars marking, punching, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
1. Transverse Conveyor |
2. Rotating Loading System with Rotating Motor |
3. Infeed Conveyor and CNC Controlled Carriage |

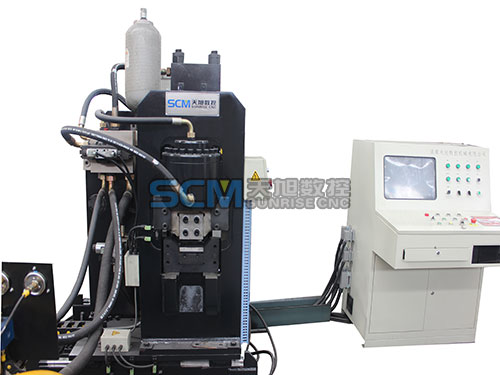

4. Machine Host Including Punching, Marking & Shearing Unit |
5. Unloading Conveyor |
6. Hydraulic Unit |
7. Electrical Cabinet |
1. Flat bar processing size: Max. Length to 8m, width 40-120mm.
2. Functions: Punching, Marking, Shearing.
3. Quantity punches on each side: 4 pics(two for circular holes, one for oval hole, one for marking).
4. Double linear guides+NC carriage feeding, more faster and precision more higher.
5. Double accumulators(Which are located above the host and the hydraulic station), improve the speed of punching and production efficiency.
6. Single blade cutting, no scraps.
Model |
TPL8004 |
Max.workpiece length (mm) |
8000 |
Workpiece width (mm) |
40~120 |
Max.punching diameter (mm) |
Round holes Φ26, Slot hole Φ22x50/p> |
Max.thickness (mm) |
12 |
Punching force (KN) |
1000 |
Qty. of die-station |
Four (two round hole, one slot hole, one marking) |
Marking force (KN) |
800 |
No. of marking die-station |
1 |
Character size (mm) |
14×10×19 |
Qty. of character |
12 |
Cutting force (KN) |
1200 |
Cutting mode |
Flat end with single-blade cutting; Circular arc end with double-blade cutting |
Feeding mode |
NC carriage |
Feeding speed (m/min) |
60 |
Program function |
Error display |
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable work-piece precision.
2. Key hydraulic, pneumatic and electric parts all imported.
3. Computer with Chinese/English interface,easy operation, and can display the drawing of workpiece.
4. All marking,punching and shearing in automatic completeness.
5. Fast marking speed.
6. Flat end with single blade cutting; Circular arc end with double-blade cutting.
7. With self-diagnosis failures function.
