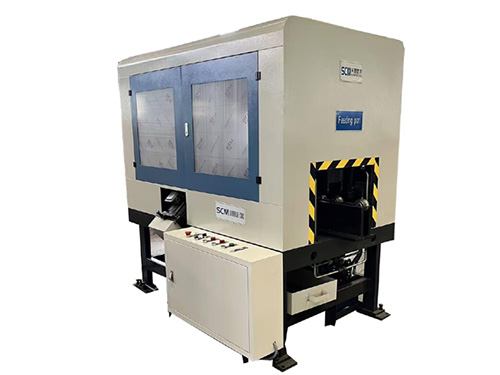

TQC200 Angle Hill Milling Machine
Category By Product And Industry » Angle Tower Processing Machines » TQC200/TQC250-2C Shovel Back Machine
Applicable Industry of TQC200/TQC250 Angle Bank Milling Machine

The machine used for angle bank milling, mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.

Usage & Characteristics of TQC200 Angle Bank Milling Machine

1. The device uses high-speed milling for back and root of angle shoveling processing technology.

2. Greatly improving the shoveling production efficiency, ten times efficient than the traditional planer.

3. Easily operate, low requirement for the worker's operation level.

4. Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.

5. Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.

6. The machine is easy to operate, flexible regulation and stable operation.

Technical Parameters of TQC200 Angle Bank Milling Machine

Model

TQC200

TQC250

Total power

10kW

12kW

Single-spindle power

4kW

5.5kW

Power supply

380V,50Hz

380V,50Hz

Air supply

0.6MPa~0.7MPa

0.6MPa~0.8MPa

Cutting Speed

150~400rpm

0~400rpm

Diameter of cutting plate

100mm

200mm

Feeding speed

100~450mm(Adjustable)

0~450mm/min

Rotation of spindle

450rpm

360rpm

Quantity axis

2

2

Quantity feeding motor

2

2

Adjustment motor of cutting amount

1(Servo or stepper motor)

1(Servo or stepper motor)

Quantity pressure cylinder

4

4

Angle processing size

L50~L200

L63~L250

Length of angle

280mm~+∞(Processing length unlimited)

330mm~+∞(Processing length unlimited)

Operation mode(Data input)

Touch screen (with compensation function)

Product Features of TQC200 Angle Back Milling Machine

1.1.By installing special cutter of a few cutting blade , high speed milling and high efficiency, surface roughness is good, one time molding process.

2.According to request it can do a single-stage and continuous cutting.

3.Operation of this machine is simple, reduced operational requirements of workers.

4.Machine with high degree automation, can achieve a continuous, intermittent feeding, effectively improve work efficiency; process one size L180 × 180 × 18 length 800mm angle, for about 2-3 minutes, one worker can operate two machine together.

5.Compared with the traditional planer, this machine overcome the problems that limited length, interposed complicated , the processing length unlimited, without the workpiece clamping device so that the processing is more convenient, reducing the labor intensity, greatly improving production efficiency.

6.Simple operation, flexible adjustment and stable operation.

7.Multi -purpose machine, can complete continuous feed and cutting length.

8.With the air pressure protection device to prevent the safety accidents caused by low pressure.

9.With touch-screen operator interface.

10.Adjustment mechanism adopt the servo or stepper motor, high precision, low failure rate, easy maintenance.

11.Spindle box adopt oil-immersed structure, longer service life, more stable performance.

 Steel Angle Shovel Back Depth & Cutting Tools Reference Table

Backoff External Cooperate with Angle Steel Specification (Material)

Main Material Fillet Radius

Lining Angle Shovel Back Depth
(1.5 Mm Gap)

Recommend The Use Of Cutting Tools

63

R7

4.4

R20

70

R8

4.8

R20

75

R9

5.2

R20

80

R9

5.2

R20

90

R10

5.6

R20

100

R12

6.5

R20

110

R12

6.5

R20

125

R14

7.3

R20

140

R14

7.3

R20

160

R16

8.1

R24

180

R16

8.1

R24

200

R18

9

R24

220

R20

9.8

R28

250

R22

10.6

R28

320

R28

13.1

R35

Workpieces of TQC200 Angle Hill Milling Machine
Workpieces
Workpieces
Workpieces
