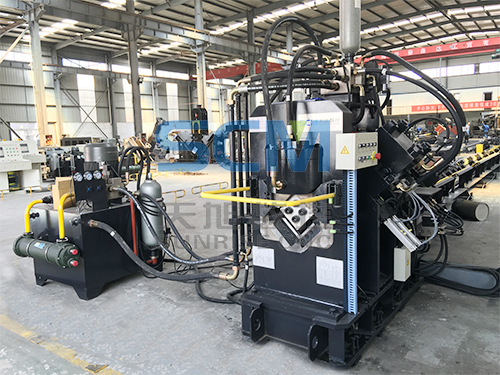

TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles
Category By Product And Industry » Bridge/Parking Garage Structure Processing Machines » TBL1412, TBL1412A, TAPM1412 (Enhanced) CNC Angle Punching, Marking & Shearing Line

This machine combines three functions is one device, used for punching, marking and shearing angles. So it's called CNC angle production line.

Applicable Industry of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles

The machine is the automatic special production line used for angle steel marking, punching (Circular hole, oval hole), and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.

Product Composition of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles

1. Transverse Conveyor

2. Rotating Loading System with Rotating Motor

3. Infeed Conveyor and CNC Controlled Carriage

4. Machine Host Including Punching, Marking & Shearing Unit

5. Unloading Conveyor

6. Hydraulic Unit

7. Electrical Cabinet

Main Description of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles

1. Angle processing size: 40×40×3-100×100×10mm.

2. Functions: Punching, Marking, Shearing.

3. Quantity punches on each side: 2 or 3 punches (According to customer's need).

4. Double linear guides+NC carriage feeding, more faster and precision more higher.

5. Double accumulators(Which are located above the host and the hydraulic station), improve the speed of punching and production efficiency.

6. Single blade cutting, no scraps.

Product Industry
Product Industry
Product Industry
Technical Parameters of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles

Model

TAPM1010-2

Functions

Punching, marking, shearing

Angle size (mm)

40×40×3~100×100×10

Max. punching (dia. × thi.) (mm)

Circular holes Ф26×10 (10mm, Q345); Oval hole 22×50mm

Punching force (kN)

1000

Marking force (kN)

630

Shearing force (kN)

1000

Max. length of blank (m)

10

Max. length of finished (m)

8

Qty. of punch on each side (piece)

3

Qty. of marking group

4

Character size (mm)

14×10×19

CNC axis

3

Shearing mode

Single blade shearing

Angle feeding speed (m/min)

80

Processing precision

Accordance with GB2694

Working environment

Temperature:-10°~40°; voltage: 380V.50HZ, 3 phase; voltage range: ±10%

Overall dimension (mm)

About 23000×6500×2500

Net weight of machine (kg)

About 14000

Product Features of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles

1. Feeding speed and punching speed are very fast, greatly improve the production efficiency. For 50×50×4mm angles, it can process 9 to 10 tons per 8 hours.

2. The pressing angle device, CNC infeeding carriage, Material supporting device, and clamping claws are Access to the national patent protection.

3. Adopt PLC module technology, servo motor in feeding, with high efficiency, stable work piece precision.

4. The program function is perfect, already obtained the national patent, the program is more practical and more powerful.

5. Easy programming and can directly use the program data made by lofting software. It can read NC.1 files generated by TEKLA software.

6. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

7. Only need to input size of work piece, diameter of holes, stadia and quantity of work piece when edit program.

8. Marking unit adopts closed frame with good rigidity. Marking stadia can be set at will.

9. Single blade shearing, save raw material.

10. The feeding conveyors use double linear guide, and the carriage is newest design, which improve the machine speed and accuracy.

Main Parts of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles
Main Parts
Main Parts
Main Parts
Main Parts
Main Parts
Main Parts
Workpieces of TBL1412, TBL1412A, TAPM1412 CNC Punching, Marking & Shearing Line for Angles
Workpieces
Workpieces
Workpieces
