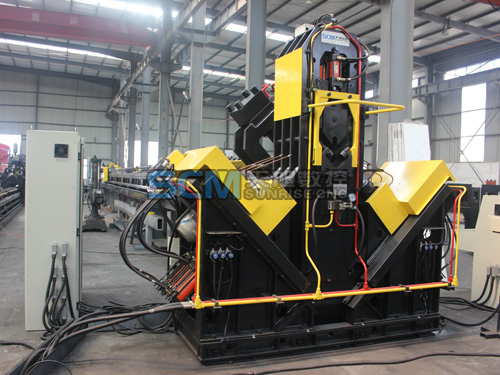

The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.
1. Transverse Conveyor |
2. Rotating Loading System with Rotating Motor |
3. Infeed Conveyor and CNC Controlled Carriage |
4. Machine Host Including Drilling, Marking & Shearing Unit (Optional Part, Max. Shearing Size 200×200×20mm) |
5. Unloading Conveyor |
6. Hydraulic Unit |
7. Electrical Cabinet |
1. Angle processing size: TBL2532 (140×140×10-250×250×32mm), TBL3535 (140×140×10-250×250×32mm).
2. Functions: Drilling, Marking.
3. Quantity punches on each side: 3 (Can install three different kinds of drill bits).
4. NC carriage feeding, more faster and precision more higher.
5. Double accumulators(Which are located above the host and the hydraulic station), improve the speed of punching and production efficiency.
Model |
TBL2532 |
TBL3535 |
Angle size (mm) |
140×140×10~ 250×250×32 |
140×140×10~ 350×350×35 |
Marking force (kN) |
1030 |
1030 |
Max. length of blank (m) |
14 |
14 |
Max. length of finished (m) |
14 |
14 |
No. of drill on each side |
3 |
3 |
No. of character group |
1 |
1 |
No. of character |
15 |
15 |
Character size (mm) |
14×10×19 |
14×10×19 |
Range of stadia (mm) |
50~220 (Stepless) |
250~320 (Stepless) |
No. of CNC axes |
3 |
3 |
Spindle rotation speed (r/min) |
180－560,Transducer stepless adjustment |
180－560,Transducer stepless adjustment |
Max. infeed speed (m/min) |
40 |
40 |
Drilling diameter (mm) |
Ф17.5~Ф40 |
Ф17.5~Ф40 |
Stroke of spindle (mm) |
180 |
180 |
Processing precision |
Accordance with GB2694-81 |
|
Programming mode |
Lofting software or manual program |
|
Overall dimensions (m) |
About 32×8.9×3.2 |
About 32×8.9×3.2 |
Weight of machine (kg) |
About 17000 |
About 18800 |
1. Spindle anti-lock brakes device have obtained national patent.
2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Key hydraulic, pneumatic and electric parts all imported.
4. Easy programming and can directly use the program data made by lofting software.
5. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece.
6. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
7. Only need to input size of workpiece, diameter of holes, stadia and quantity of workpiece when edit program.
8. With self-diagnosis failures function.
9. Can be installed shearing unit (Max. Thickness to 20mm) or sawing unit (Max. Thickness to 35mm) according to requirements. This function is optional.
