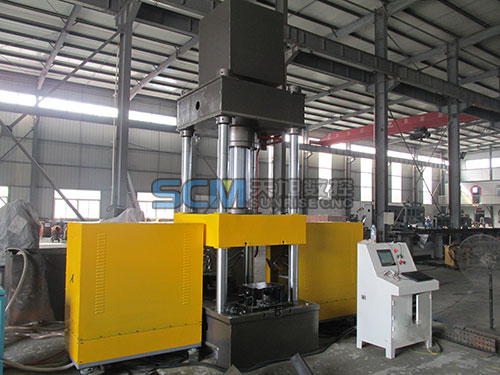

THQ250B CNC Heating Bending Machine for Angle
Category By Product And Industry » Angle Tower Processing Machines » THQ250B CNC Heating Bending Machine for Angle & Plate
Applicable Industry of THQ250B CNC Heating Bending Machine for Angle

During the manufacture process of Steel Tower, Self-made Simple tooling mold is usually used to process the angle iron. But the disadvantages of this process are labor-intensive and inaccurate positioning. In light of this situation, our technical staffs spent long time researching the tower manufacturing process and designing this CNC machine tool which only requires a small area, but adapts to a wide range of angle iron and sheet metal processing. It processes products with high-precision, height efficiency, easy operation and safety in use.

This machine tool matches inner single bending, outward single bending and plate bending. One set for each and one set of moulds for sheet. So it no longer requires any other moulds and dies. In the process, it only needs to input angle thickness and bend angle degree into Touch Panel following the instructions, adjust the length positioning of an angle, then press the circle button to achieve automatic heating and bending. For example, one piece of 200*200*16 angle can be finished within 3 minutes. For some angles, it is not necessary to heat, and then its bending time is about 30 seconds for one work piece. For plate, it also only needs to input thickness, angle degree and adjust length positioning, and then press the circle button or step the foot switch to achieve automatic bending. The heat is controlled by motor automatically. The replacement of its moulds is very easy and convenient. Within 10 minutes, the moulds changing can be finished.

Technical Parameters of THQ250B CNC Heating Bending Machine for Angle

1

Overall dimension (mm)

3500×3800×3500

2

Motor power (kW)

15

3

Heating power (kW)

60kW ×2

4

The oil tank pressure (kN)

1600

5

The oil tank stroke (mm)

700

6

Processing angle range (mm)
Heel up (outside double-sided bending)

80×80×7 -- 250×250×25

7

Processing angle range (mm)
Heel down (inside double-sided bending)

80×80×7 --160×160×16

8

Processing angle range (mm)
Tension (outward single side bending)

80×80×7 --200×200×18

9

Processing Angle Range (mm)
Compression (inner single side bending)

80×80×7 --200×200×16

10

Bending plate range (mm)

Thickness:2-16; width:600

11

Outward double-sided bending degree for angles (°)

<200mm:40°; >200mm:20°

12

Inner double-sided bending degree for angles (°)

<160mm:16°; >160mm:10°

13

Outward single side bending degree for angles (°)

<160mm:30°; >160mm:20°

14

Inner single side bending degree for angles (°)

<160mm:30°; >160mm:20°

15

Angle opening & closing range (mm)

80×80×7--180×180×16

16

Max. opening & closing degree for angles (°)

20°

17

Bending degree for plates (°)

150°

18

NC axis

3

19

Data entry

Touch panel input

20

Power

380V, 50Hz

Features of THQ250B CNC Heating Bending Machine for Angle

1. PLC control, human-computer interface, touch screen.

2. IGBT super audio induction heating greatly improve efficiency and reduce cost.

3. Multi-function, point bending, double side bending, opening & closing angle, plate bending.

4. Reduce the labor intensity of workers, and ensure the stability of work piece accuracy.

5. Mechanical, electrical and hydraulic integration.

6. Main electric components and hydraulic components are imported brands.

7. Programming simple, automatic and manual are both ok.

Main Parts of THQ250B CNC Heating Bending Machine for Angle
Main Parts
Main Parts
Main Parts
Main Parts
Main Parts
Main Parts
Workpieces of THQ250B CNC Heating Bending Machine for Angle
Workpieces
Workpieces
Workpieces
