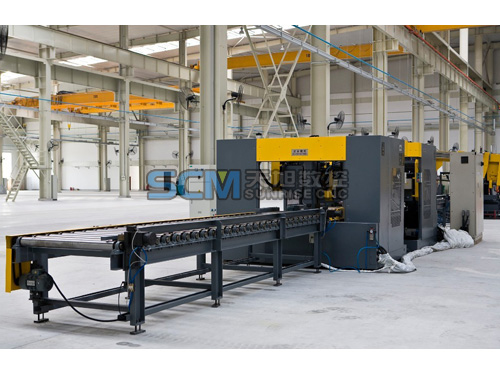

TBM55 CNC H Beams Beveling Machine
Applicable Industry of TBM55 CNC H Beams Beveling Machine

Used for the milling of gloves of H-shape steel and box beams in the field of steel structure, 3-dimensional garage and petrol platform.

Product Composition of TBM55 CNC H Beams Beveling Machine

1. The machine can mill both end of H-beam, bevel the flange and web of H-beam such as arc notch, straight line, etc. in one stroke.

2. The size of groove can be adjusted and the surface of work piece with good quality and high efficiency.

3. Two columns of one side or four columns of two sides, two or four pieces milling unit with three spindles.

4. The strength and stiffness of lathe bed is fine, hydraulic clamping work piece, stable and reliable, and with lower vibration and noise when processing.

5. Milling and groove both adopt dislocation blade, can prolong the life of blade.

6. Mechanical feeding structure, the feeding speed can be adjusted so as to ensure reliability and safety of feeding.

7. Adopt automatic positioning devices, no need manual adjustment.

8. PLC control, touching screen input parameters and programming.

9. Main machine, hydraulic pressure and electric components adopt famous products from domestic and abroad cooperation.

Specifications of TBM55 CNC H Beams Beveling Machine

Model

TBM55/6

Workpiece parameter

Web height (mm)

220~1250

Flange edge width (mm)

100~600

Flange thickness (mm)

10~55

Workpiece length (mm)

>400

Milling head

Quantity

2

Head quantity

6

Rotation speed of spindle (r/min)

267

Infeed speed (mm/min)

0~300

Motor power of spindle (kW)

2x15

CNC slipway

Transverse slipway stroke

1050mm

Longitudinal slipway stroke

300mm

Slipway moving speed

150~1000 mm/min

Electrical system

Control mode

PLC

Overall dimensions (m)

7x3.9x2.8

Weight (t)

11000
