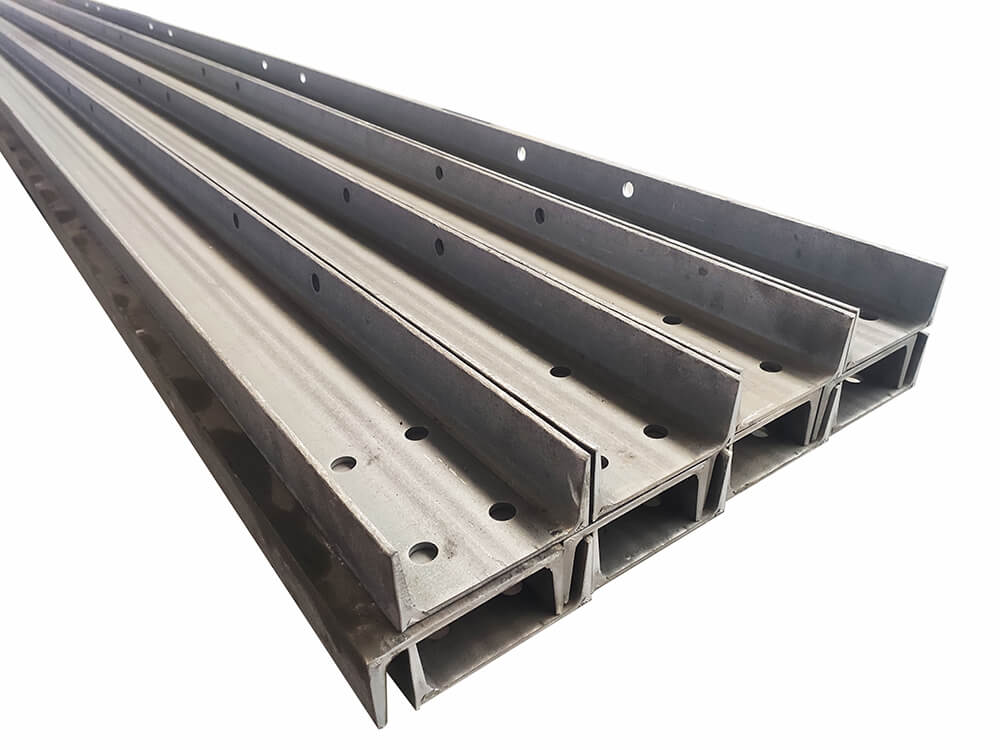

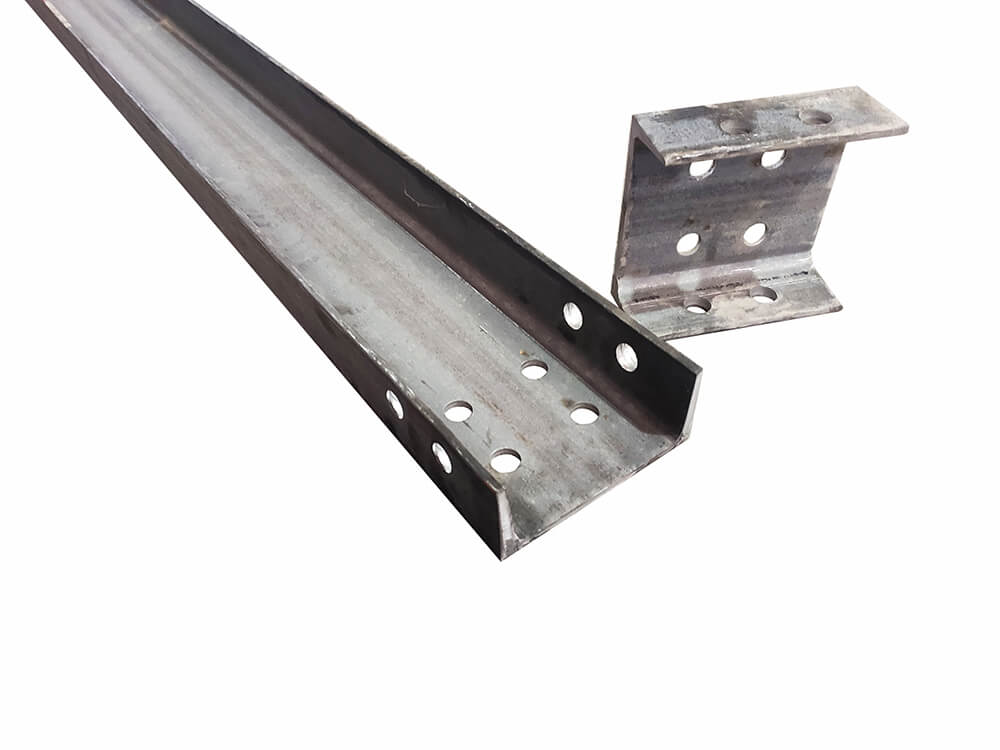

The machine used for channels three-side marking, punching and fixed length cutting, angles two-side punching and flat bars single-side punching to ensure the accuracy of hole location, high working efficiency and automation. Especially suitable for multi-variety processing. Widely used in electric power, steel structure and other industries.

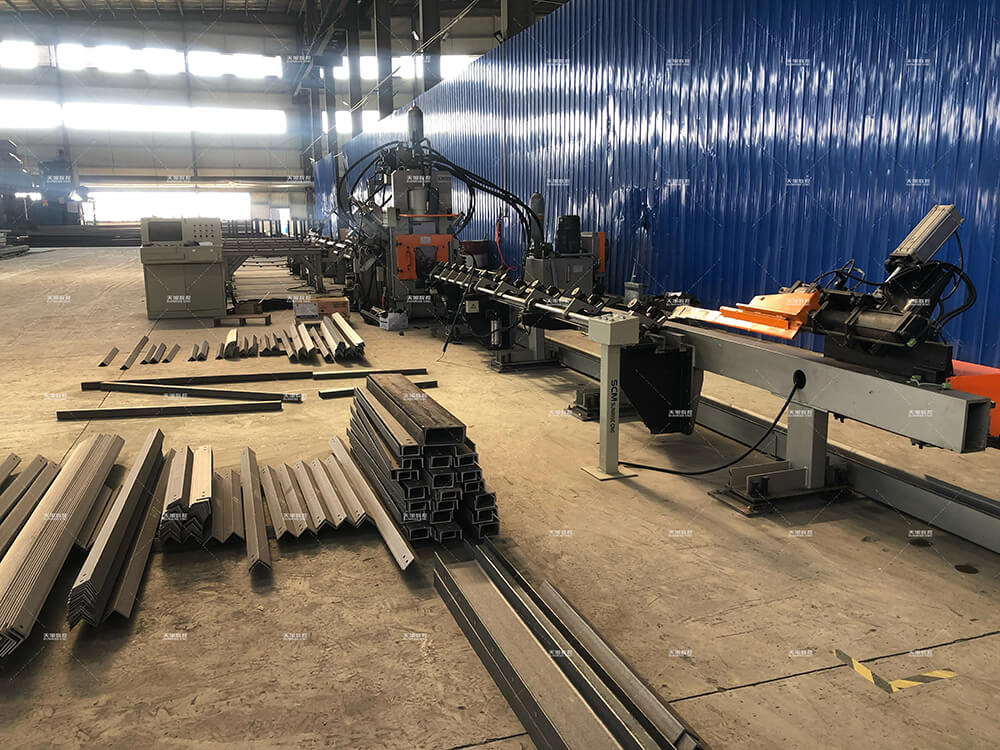

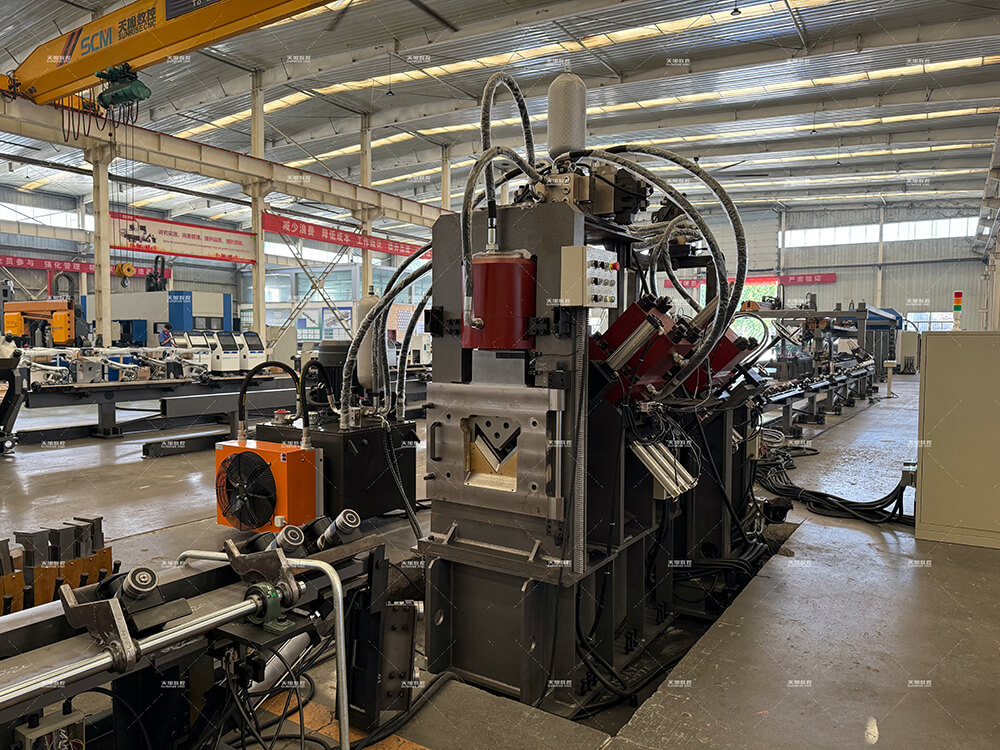

Product Composition of TUL20-9 CNC Three-side Punching, Marking & Shearing Line for Channels

1. Transverse Conveyor

2. Rotating Loading System with Rotating Motor

3. Infeed Conveyor and CNC Controlled Carriage

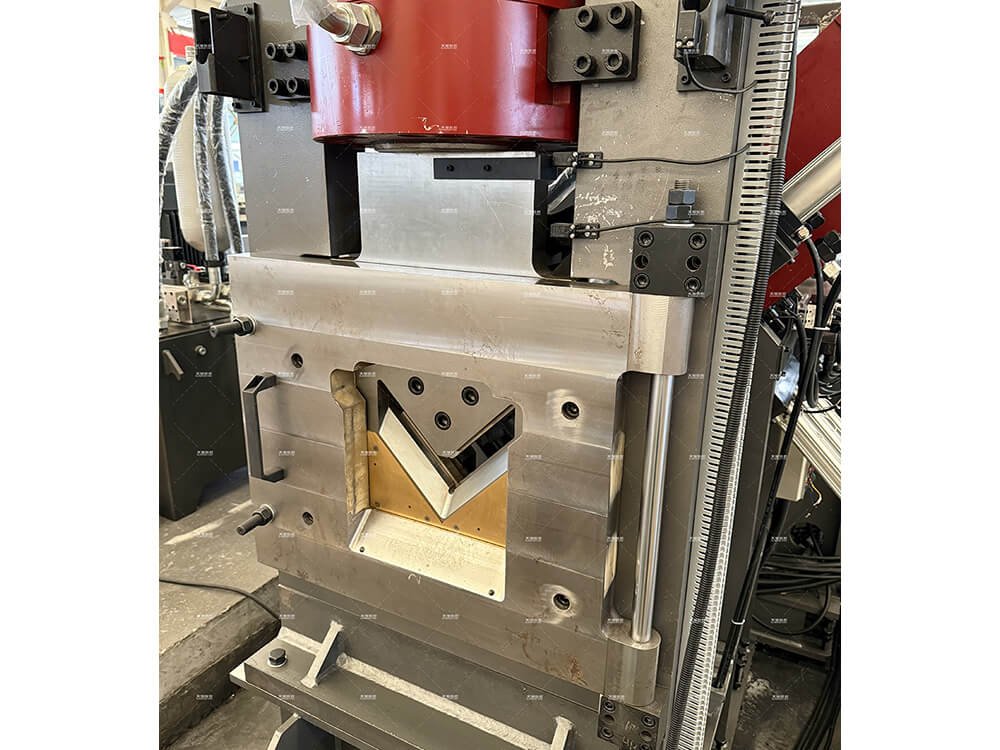

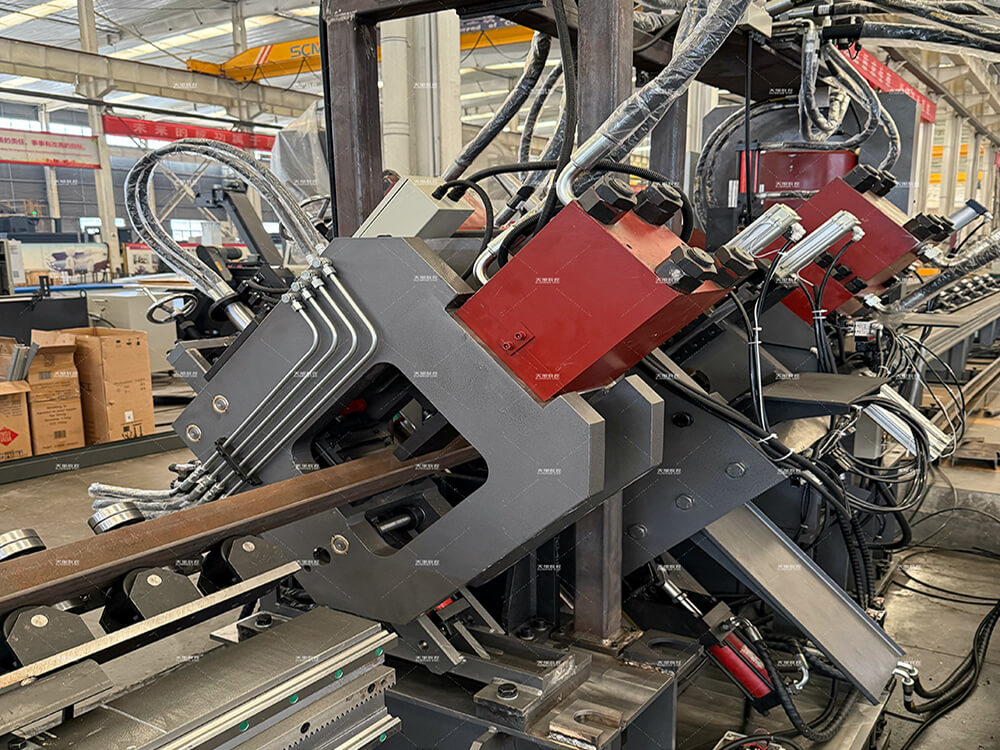

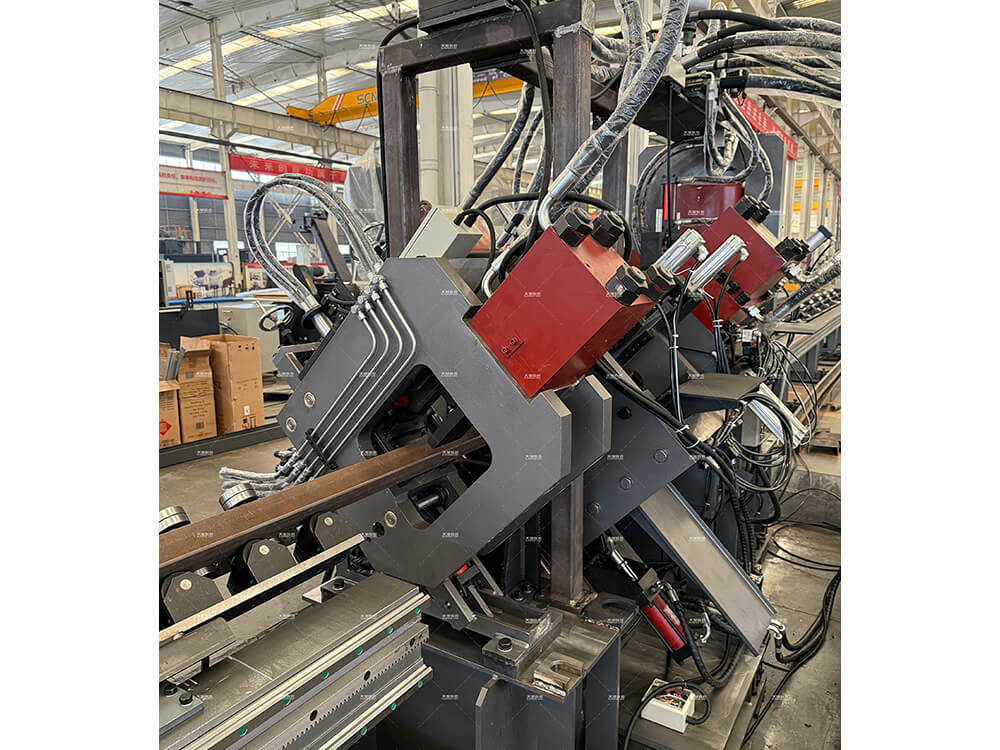

4. Machine Host Including Punching, Marking & Shearing Unit

5. Unloading Conveyor

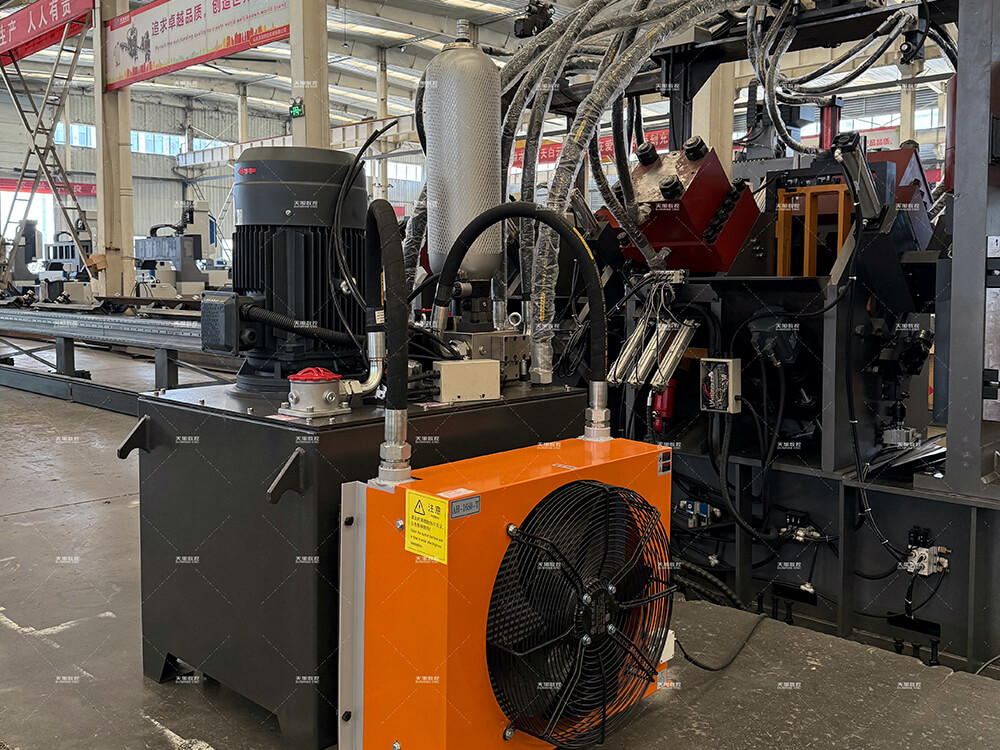

6. Hydraulic Unit

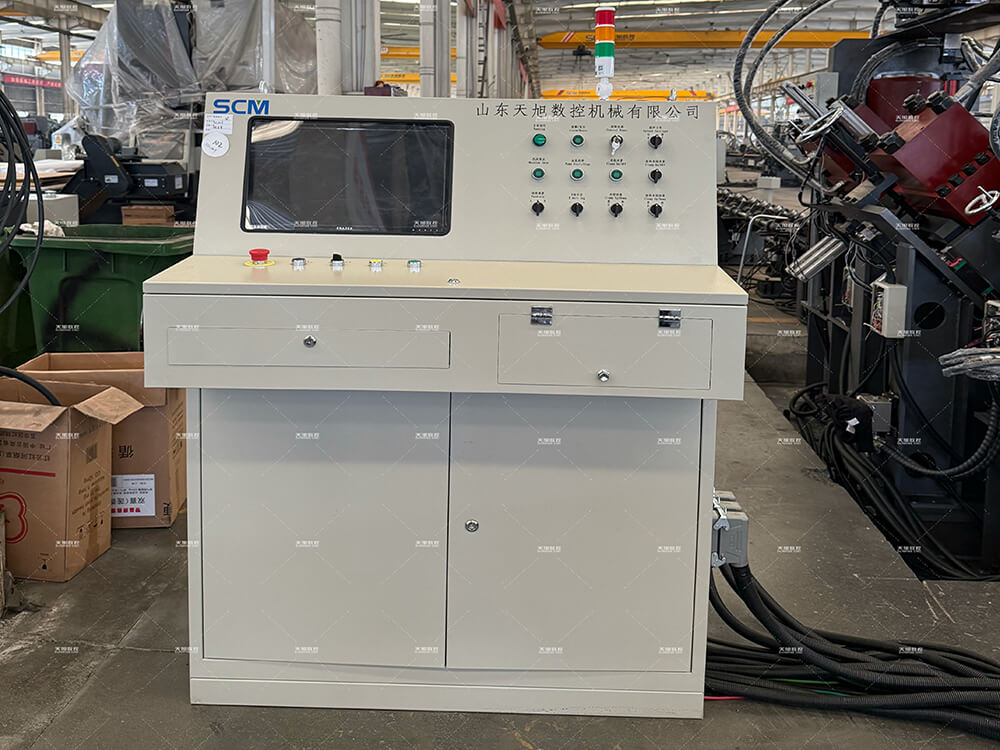

7. Electrical Cabinet

■ Compared with the traditional punching machine, the machine has advantages in operation mode, punch effect and product price that other products can not achieve and realize. It has high accuracy and production efficiency, and has higher stability and powerful functions.

■ The machine has been improved in the manufacturing process and processing technology, and choose the unique die handling structure, so it can improve its rotational speed and enhance its safety in use.

■ The machine has strong wear resistance, and all materials can be subjected to corrosion resistance and abrasion resistance at the time of selection, and the machine can also be subjected to special treatment, so that the position and the accuracy of the punching can be ensured when in use.

■ In addition, the machine not only has high stability and powerful functions, but also has the advantages of low energy consumption and high safety, which can improve its rotational speed and production efficiency, at the same time, it can also better ensure the safety of the use of operators. Thus, the punching work of the three side punching of the channels becomes simpler.

■ Electrical systems include CNC systems, servo systems, programmable controllers, detection and protection components, etc. The servo motor, PLC, contactless switch and other electrical components and main hydraulic components, pneumatic components, cylinders are well-known brand products in the world, and have high reliability.

■ With self-diagnosis failures function
